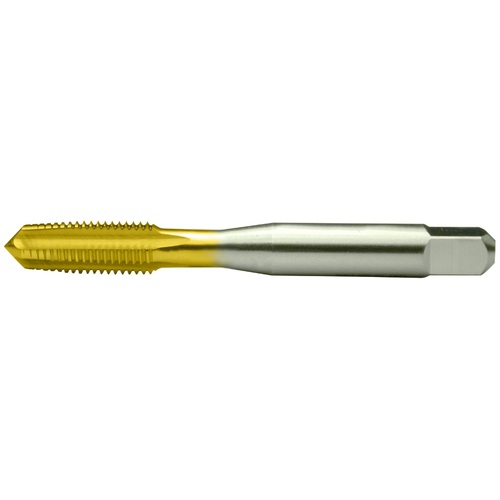

#4-40 UNC 3 Flute H2 Taper HSS Standard Straight Flute Hand Tap- TiN
Straight Flute Tap; #4 - 40 ; 1-7/8″ OAL ; 3 FL ; HSS ; TiN ; H2 | 2B ; Series HTGP-TN
| Thread Diameter Size (TDZ) | #4 | Chamfer | Taper |
| Threads per Inch (TPI) | 40 | Coating | TiN |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 1-7/8″ | End Shape | Square |
| Thread Cutting Part Length (THL) | 9/16″ | Style | Taper |
| Connection Diameter Machine Side (DCONMS) | 0.141″ | Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Application | General Purpose | Length Group | 2D |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSS | Series/List # | HTGP-TN |
| Thread Tolerance Class (TCTR) | H2 | 2B | Thread Size | #4 - 40 |
| Tool Type | Hand Tap |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.007
