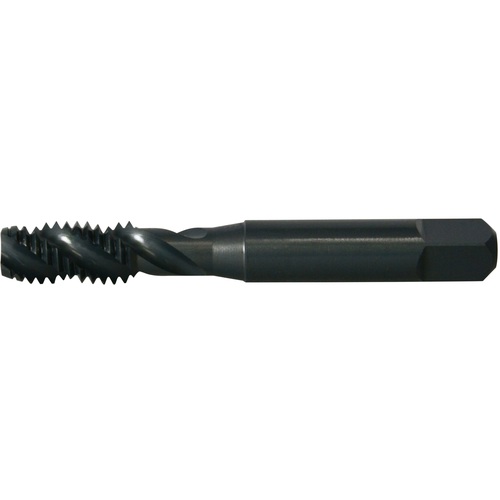

5/16-18 UNC 3 Flute H3 Semi-Bottoming HSS (M4) CNC For Soft Metals Spiral Flute Tap- Steam Oxide
Spiral Flute Tap; 5/16″ - 18 ; 2-23/32″ OAL ; 3 FL ; HSS ; Black Oxide ; H3 | 2B ; Series SFS
| Thread Diameter Size (TDZ) | 5/16″ | Tool Type | Machine Tap |
| Threads per Inch (TPI) | 18 | Chamfer | Semi-Bottoming |
| Thread Standard | NC | Coating | Black Oxide |
| Overall Length (OAL) | 2-23/32″ | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 11/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Style | Semi-Bottoming |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 40 Degrees | Length Group | 2.5D |
| Applicable Material | | Steel | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | SFS |
| Thread Tolerance Class (TCTR) | H3 | 2B |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.049
