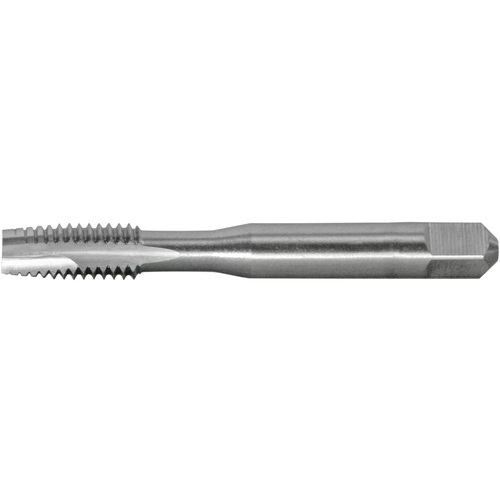

1/4-28 UNF 2 Flute H3 Bottoming HSS Standard Spiral Point Tap- Bright
Spiral Point Tap; 1/4″ - 28 ; 2-1/2″ OAL ; 2 FL ; HSS ; Uncoated ; H3 | 2B ; Series SPGP
| Thread Standard | NF | Application | General Purpose |
| Thread Size | 1/4″ - 28 | Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Thread Diameter Size (TDZ) | 1/4″ | Thread Cutting Part Length (THL) | 0.63″ |
| Threads per Inch (TPI) | 28 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H3 | 2B | End Shape | Square |
| Overall Length (OAL) | 2-1/2″ | Style | Bottoming |
| Chamfer | Bottoming | Shank Type | Round w/ Drive Square |
| Coating | Uncoated | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Length Group | 2D |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Tool Type | Machine Tap | Series/List # | SPGP |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.027
