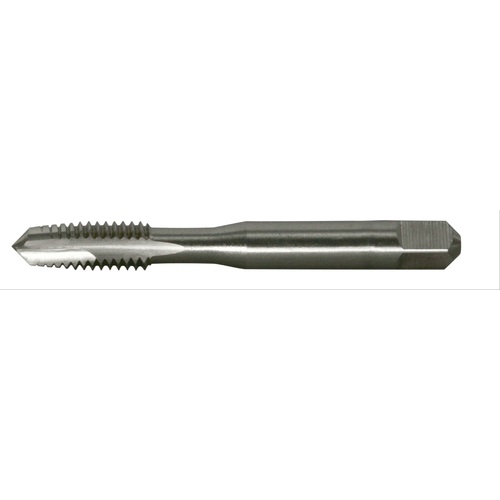

5/16-24 UNF 2 Flute H3 Plug HSS Low Shear Spiral Point Tap- Bright
Spiral Point Tap; 5/16″ - 24 ; 2.72″ OAL ; 2 FL ; HSS ; Uncoated ; H3 | 2B ; Series SPLS
| Thread Standard | NF | Application | General Purpose |
| Thread Size | 5/16″ - 24 | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Thread Diameter Size (TDZ) | 5/16″ | Thread Cutting Part Length (THL) | 0.69″ |
| Threads per Inch (TPI) | 24 | Flute Type | Straight |
| Thread Tolerance Class (TCTR) | H3 | 2B | End Shape | Square |
| Overall Length (OAL) | 2.72″ | Style | Plug |
| Chamfer | Plug | Shank Type | Round w/ Drive Square |
| Coating | Uncoated | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Length Group | 2D |
| Cutting Edge Material | HSS | Measurement Type | Inch |
| Tool Type | Machine Tap | Series/List # | SPLS |
| Applicable Material | | Steel | Cast Iron | Hard Materials | |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.049
