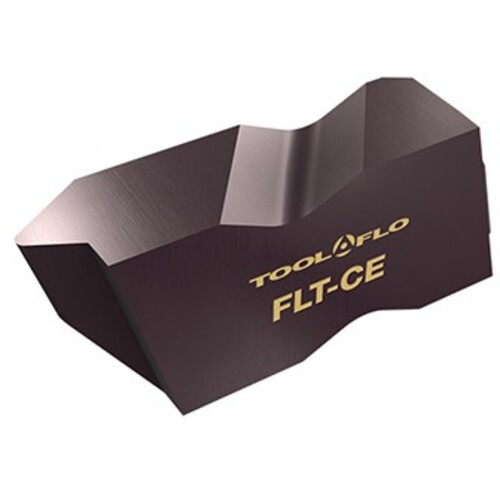

FLTC-3MR200E AC3R
| Application | | Int Ext Threading Flo Lock | | Thread Pitch Maximum (TPX) | 8.7 mm |
| Insert Thickness (S) | 4.95 mm | Insert to Shank Reference | 3.8 mm |
| Corner Radius (RE) | 3 mm | Cutting Edge Length (L) | 10.2 mm |
| Body Material | Carbide | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Grade | AC3R | Thread Form Type (THFT) | UN Am. Unified ANSI/ASME B1.1 |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | External ISO Metric (DIN13 12-1986 class: 6g) FloLock Threading Inserts with Right Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Weight
0.22
