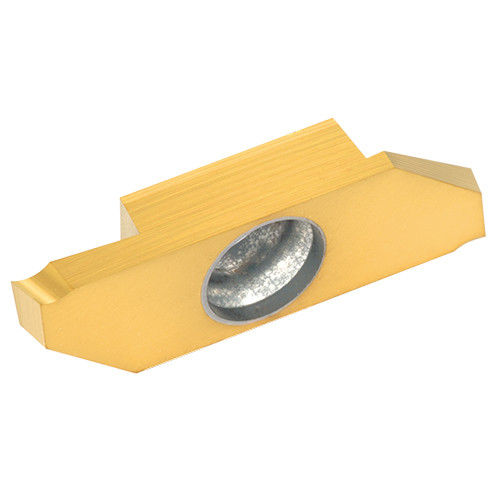

TFGR8150FA50 C3
Parting Off Insert; 0.059″ CW × 0.156″ Thickness × 0″ Corner Radius ; Right Hand ; Carbide ; Uncoated ; C3
| Cutting Width (CW) | 0.059″ | Application | | Swiss Machine Parting | |
| Corner Radius (RE) | 0″ | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.156″ | Max. Grooving Feed (fg(max)) | 0.006 ″/rev |
| Cutting Depth Maximum (CDX) | 0.197″ | Min. Grooving Feed (fg(min)) | 0.003 ″/rev |
| Cutting Edge Material | Carbide | Angle | 15 Degrees |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | C3 | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | FloSwiss Right Hand Parting Inserts | Country of Origin | Japan |
Shipping Info
Package Weight
0.000
