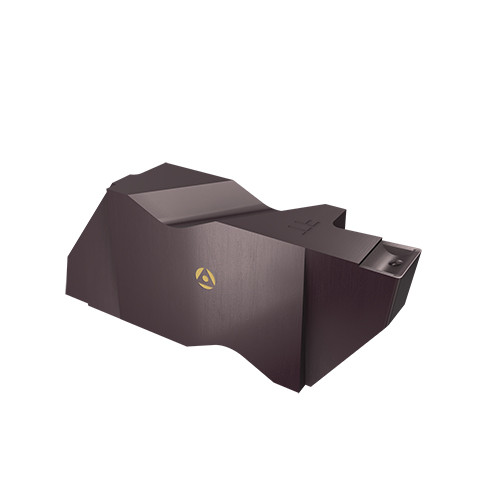

FLG-4M320R-CB AC3R
Grooving Insert; FLG 4M320R CB R K68
| Cutting Width (CW) | 3.2 mm | Application | | Int Ext Grooving Flo Lock | |
| Corner Radius (RE) | 0.19 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 7.36 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 6.48 mm | Chip Breaker Type | CB |
| Insert Rake Angle (GAN) | 0 Degrees | Measurement Type | Metric |
| Coating | TiAlN | Min. Grooving Feed (fg(min)) | 0 mm/rev |
| Grade | AC3R | Body Material | Carbide |
| Shape | Parrallelogram | Cutting Edge Length (L) | 16.15 mm |
| Cutting Edge Material | Carbide | Height | 11.51 mm |
Product Features
| Family Description | Internal and External Grooving #4 Gage FloLock Inserts with Chip Control and Right Hand Clamping Notch | Country of Origin | USA |
Shipping Info
Package Weight
0.001
