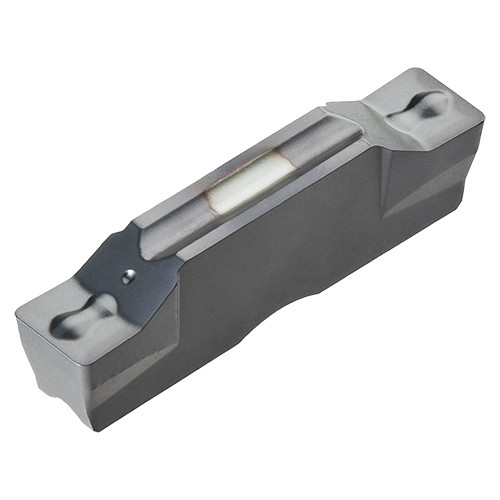

FDIE4-040 AC22
Grooving Insert; 0.157″ CW ; Carbide ; AC22 ; TiAlN
| Cutting Width (CW) | 0.157″ | Application | | Int Grooving On Edge | |
| Corner Radius (RE) | 0.0157″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.787″ | Insert Seat Size Code (SSC) | 4 |
| Insert Rake Angle (GAN) | 0 Degrees | Measurement Type | Inch |
| Coating | TiAlN | Min. Grooving Feed (fg(min)) | 0 ″/rev |
| Grade | AC22 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Height | 0.197″ |
Product Features
| Family Description | Double-Ended #4 Gage Inserts, 1st Choice for Internal Grooving & Turning, Tolerance of Insert Width +-0.0008 Inch | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.000
