FDS 1.4-016 TP222

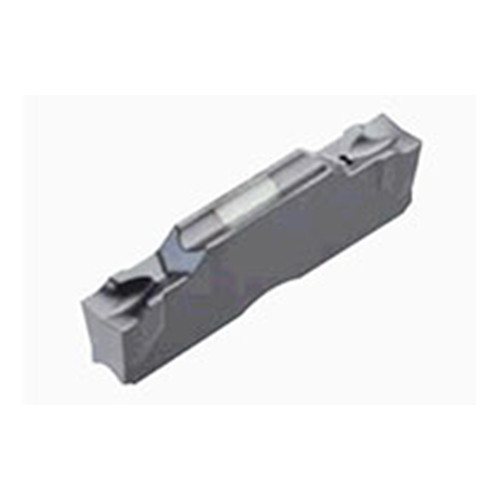

Grooving Insert; 0.055″ CW ; Carbide ; TP222 ; TiCN
| Cutting Width (CW) | 0.055″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0063″ | Insert Seat Size Code (SSC) | 1 |
| Insert Length (INSL) | 0.63″ | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | TP222 | Height | 0.169″ |
| Cutting Edge Material | Carbide | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Application | | External Grooving | | Cutting Edge Angle Major Right Hand (PSIRR) | 0 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | |
Product Features
| Family Description | Double-Ended #1 Inserts with Low Cutting Force Chipbreaker for Ext. Grooving & Parting, Tol. of Insert Width +-0.002 In | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.000
