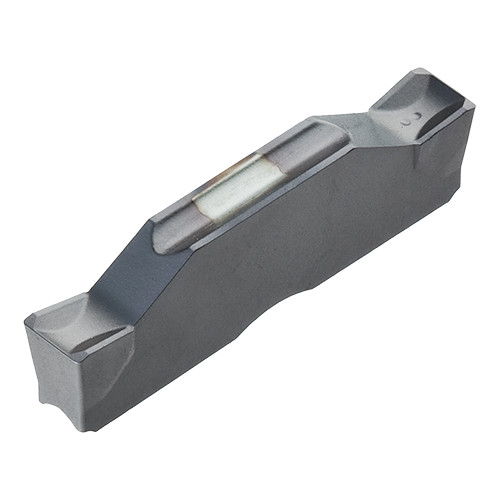

FDM 5-030 TP222
Grooving Insert; 0.197″ CW ; Carbide ; TP222 ; TiCN
| Cutting Width (CW) | 0.197″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0118″ | Insert Seat Size Code (SSC) | 5 |
| Insert Length (INSL) | 0.984″ | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | TP222 | Height | 0.217″ |
| Cutting Edge Material | Carbide | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Application | | External Grooving | | Cutting Edge Angle Major Right Hand (PSIRR) | 0 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Work Piece Parting Diameter Maximum (CUTDIA) | 0″ |
Product Features
| Family Description | Double-Ended #5 Gage Inserts, 1st Choice for External Grooving & Parting, Tolerance of Insert Width +-0.002 Inch | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.000
