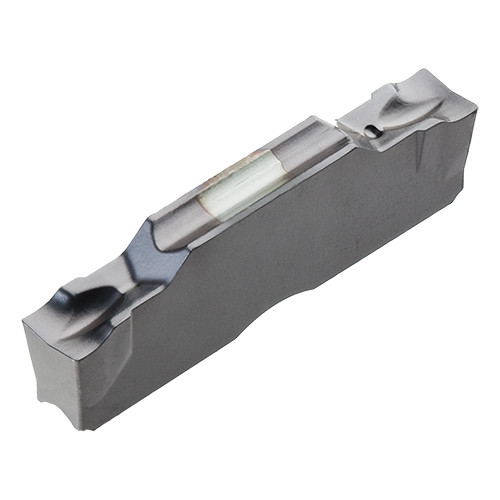

FDS 4-030 AC22
Grooving Insert; 0.157″ CW ; Carbide ; AC22 ; TiAlN
| Cutting Width (CW) | 0.157″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0118″ | Insert Seat Size Code (SSC) | 4 |
| Insert Length (INSL) | 0.787″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AC22 | Height | 0.197″ |
| Cutting Edge Material | Carbide | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Application | | External Grooving | | Cutting Edge Angle Major Right Hand (PSIRR) | 0 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Double-Ended #4 Inserts with Low Cutting Force Chipbreaker for Ext. Grooving & Parting, Tol. of Insert Width +-0.002 In | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.000
