FDIS2-020 TP222

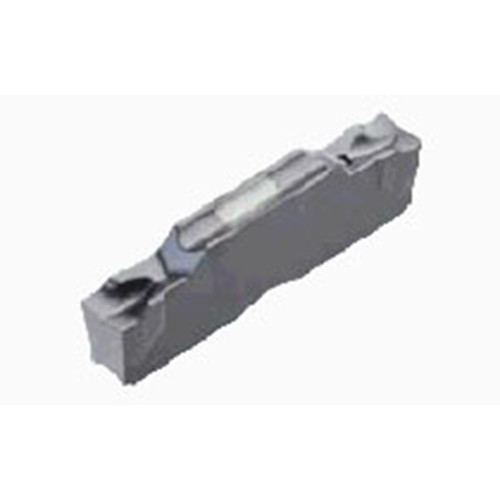

Parting Off Insert; 0.079″ CW × 0.787″ Length × 0.0078″ Corner Radius ; Carbide ; TiCN ; TP222
| Cutting Width (CW) | 0.079″ | Application | | Int Grooving On Edge | |
| Corner Radius (RE) | 0.0078″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Length (INSL) | 0.787″ | Height | 0.197″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | TP222 | Insert Seat Size Code (SSC) | 2 |
Product Features
| Family Description | Double-ended inserts, internal grooving, insert width 2mm only, lower cutting force type, tolerance +-0.05mm | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.000
