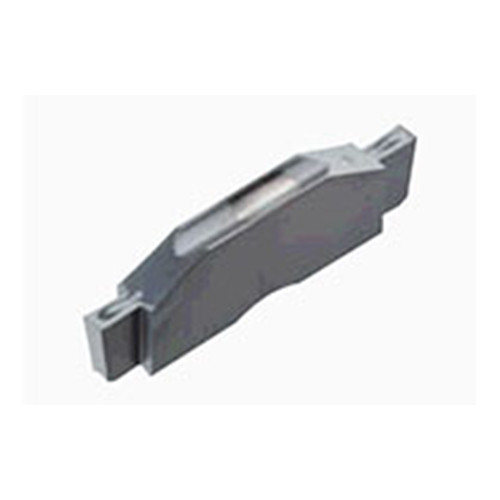

FDE215-015 TP222
Grooving Insert; 0.085″ CW × 0.138″ Max Depth ; Carbide ; TP222 ; TiCN
| Cutting Width (CW) | 0.085″ | Application | | External Grooving | |
| Corner Radius (RE) | 0.0059″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Cutting Depth Maximum (CDX) | 0.138″ | Insert Seat Size Code (SSC) | 2 |
| Insert Length (INSL) | 0.787″ | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | TP222 | Height | 0.197″ |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Precision Double-Ended #2 Gage Inserts for External Shallow Grooving, Tolerance of Insert Width +-0.0008 Inch | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.000
