TFETL07210015-D060 AC22S

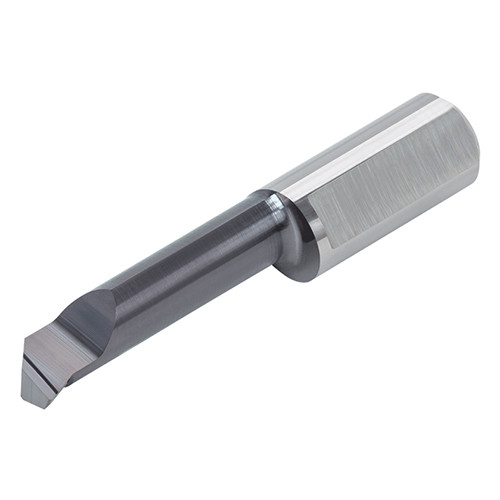

Boring Bar; 0.276″ Shank Dia. × 0.236″ Min Bore Dia. × 0.02″ Max Bore Depth × 1.457″ LF × 1.457″ OAL ; 0.0059″ Corner Radius ; Carbide ; TiAlN
| Connection Diameter Machine Side (DCONMS) | 0.276″ | Front End Width (a) | 0.209″ |
| Minimum Bore Diameter (DMIN) | 0.236″ | Corner Radius (RE) | 0.0059″ |
| Functional Length (LF) | 1.457″ | Cutting Depth Maximum (CDX) | 0.02″ |
| Head Length (LH) | 0.827″ | Functional Width (WF) | 0.071″ |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Material | Carbide |
| Grade | AC22S | Measurement Type | Inch |
| Application | | Internal Profiling | | Overall Length (OAL) | 1.457″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | MicroCut Left Hand Solid Bar for Boring, Profiling and Chamfering | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
