FSM 5-030 TP222

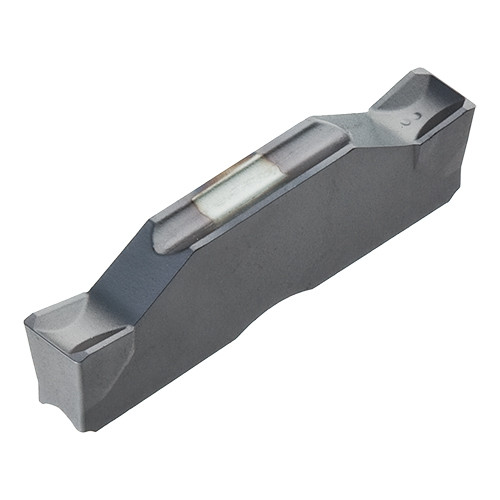

Parting Off Insert; 0.197″ CW × 0.984″ Length × 0.0118″ Corner Radius ; Neutral ; Carbide ; TiCN ; TP222
| Cutting Width (CW) | 0.197″ | Application | | External Grooving | |
| Corner Radius (RE) | 0.0118″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Length (INSL) | 0.984″ | Height | 0.217″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | TP222 | Insert Seat Size Code (SSC) | 5 |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | Single-Ended #5 Gage Inserts, 1st Choice for External Grooving & Parting, Tolerance of Insert Width +/-0.002 Inch | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.000
