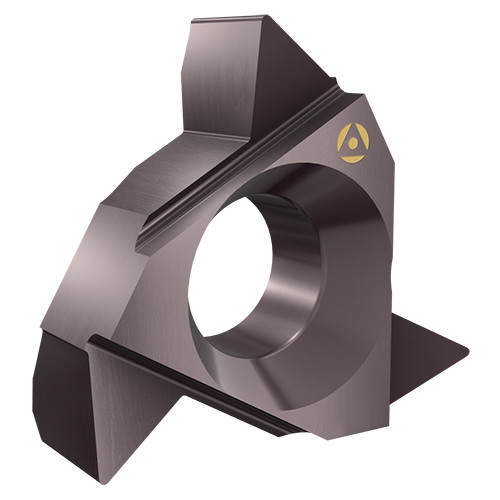

MT LD 1160D AC22
| Insert Length (INSL) | 0.433″ | Pitch TPI Internal (TPI Int) | 24-12 |
| Inscribed Circle Diameter (IC) | 1/4″ | Pitch TPI External (TPI Ext) | 32-14 |
| Cutting Position | External | Cutting Edge Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Pitch External | 0.75-1.50″ |
| Grade | AC22 | Pitch Internal | 1.0-2.0″ |
| Shape | Triangle | Measurement Type | Inch |
| Threads per Inch Maximum (TPIX) | 24 | Body Material | Carbide |
| Threads per Inch Minimum (TPIN) | 12 | Thread Form Type (THFT) | VP60 |
Product Features
| Family Description | 60° Partial Profile Laydown Thread Milling Inserts for General Industry | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
