MT TIH 2480 11 BSPT AC22

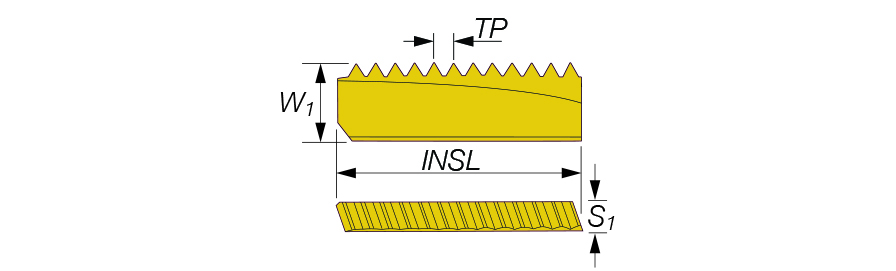

| Thread Pitch (TP) | 2.309 mm | Grade | AC22 |
| Threads per Inch (TPI) | 11 | Shape | Rectangle |
| Insert Length (INSL) | 1.496″ | Thread Designation Outside (THOD) | 1″ |
| Insert Width (W1) | 0.469″ | Cutting Edge Material | Carbide |
| Insert Thickness Total (S1) | 0.197″ | Coating | TiAlN |
| Thread Designation Inside (THID) | 2-1/2″ | Measurement Type | Inch |
| Cutting Position | External | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | BSPT55 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Helical External & Internal Thread Milling Inserts for BSPT Thread for Steam, Gas and Water Pipes | Country of Origin | Israel |
