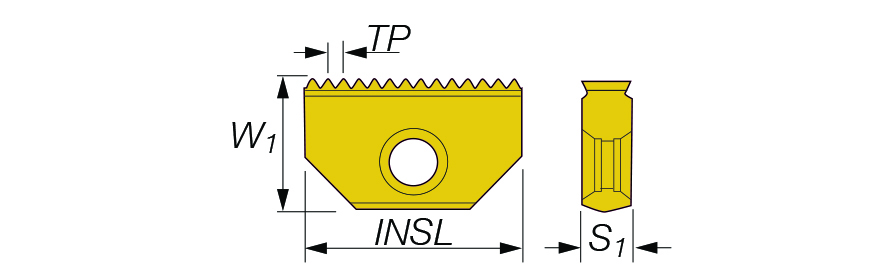

MT TIDC 826 18PG AC22
| Thread Pitch (TP) | 1.411 mm | Grade | AC22 |
| Threads per Inch (TPI) | 18 | Shape | Rectangle |
| Insert Length (INSL) | 0.827″ | Thread Designation Outside (THOD) | PG16 |
| Insert Width (W1) | 0.496″ | Cutting Edge Material | Carbide |
| Insert Thickness Total (S1) | 0.189″ | Coating | TiAlN |
| Thread Designation Inside (THID) | PG16 | Measurement Type | Inch |
| Cutting Position | External | Thread Size | PG16 |
| Application | | External Thread Milling | Internal Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | PG |
Product Features
| Family Description | External and Internal PG Full Profile Thread Milling Inserts (DIN 40430) for Electrical Connectors | Country of Origin | Israel |
Shipping Info
Package Weight
0.040
