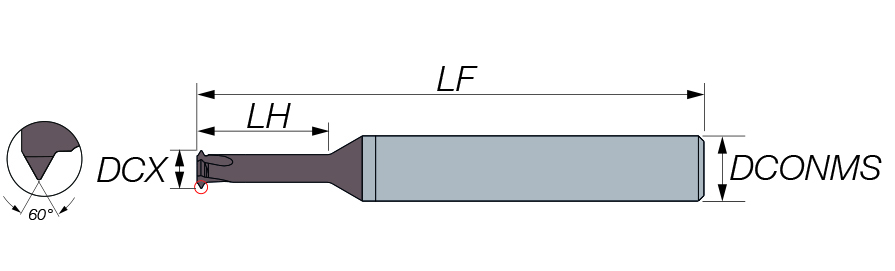

MTECI 03007C3 0.25ISO AC222
Thread Mill; M1X0.25 × 0.25 mm ; 3 mm Shank Dia. × 39 mm OAL ; Carbide ; TiAlN ; AC222
| Thread Pitch (TP) | 0.25 mm | Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 0.118″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.028″ | Usable Length (LU) | 0.142″ |
| Overall Length (OAL) | 1.535″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | AC222 |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | Small Diameter Single Point Internal ISO Profile Solid Carbide Thread Mills | Country of Origin | Israel |
Shipping Info
Package Weight
0.044
