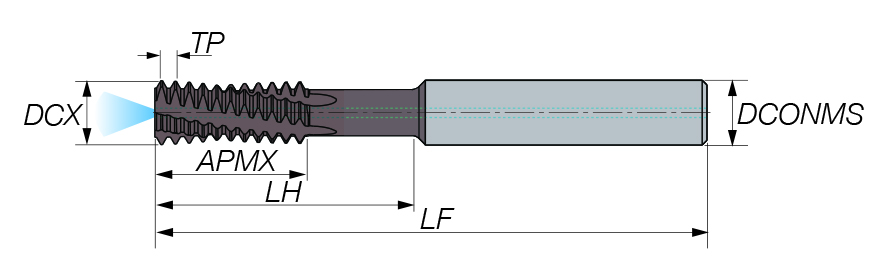

MTECQ 1616E4216UN AC22
Thread Mill; 19 - 16 Threads/" ; 0.63″ Shank Dia. × 4.134″ OAL ; Carbide ; TiAlN ; AC22
| Thread Size | 19 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 16 Threads/" | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Cutting Position | INT |
| Cutting Diameter (DC) | 0.63″ | Usable Length (LU) | 1.689″ |
| Overall Length (OAL) | 4.134″ | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Grade | AC22 |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 1″ |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
| Application | | Internal Thread Milling | |
Product Features
| Family Description | Solid Carbide Endmills with Internal Coolant Holes and a Reduced Diameter Neck, for Deep Internal UN Profile Threading | Country of Origin | Israel |
Shipping Info
Package Weight
0.587
