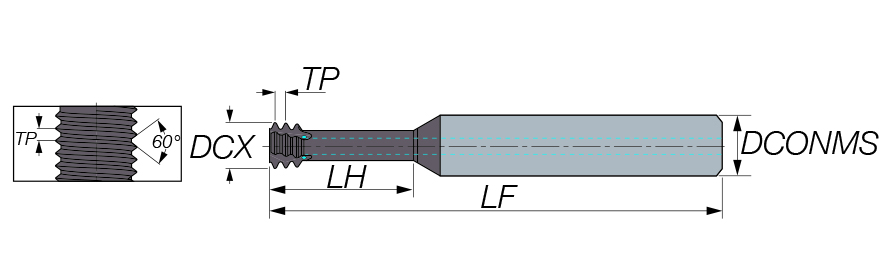

MTECS 0808C28 20UNJ AC22
Thread Mill; 7/16″ UNJF × 1.27 mm ; 8 mm Shank Dia. × 64 mm OAL ; Carbide ; TiAlN ; AC22
| Thread Pitch (TP) | 1.27 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 20 Threads/" | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Cutting Position | INT |
| Cutting Diameter (DC) | 0.315″ | Usable Length (LU) | 1.102″ |
| Overall Length (OAL) | 2.52″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | AC22 |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | NJ60 |
| Application | | Internal Thread Milling | |
Product Features
| Family Description | Small Diameter Short Solid Carbide UNJ-Type Profile Threading Endmills | Country of Origin | Israel |
Shipping Info
Package Weight
0.088
