MTECZ 08078C14 28W AC22

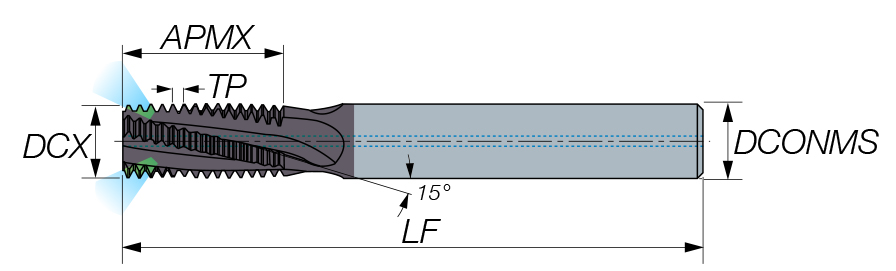

Thread Mill; G1/8 ; 8 mm Shank Dia. × 64 mm OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Threads per Inch (TPI) | 28 Threads/" | Application | | External Thread Milling | Internal Thread Milling | |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Cutting Diameter (DC) | 0.307″ | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 2.52″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | AC22 |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 0.5551″ |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | WH55 |
Product Features
| Family Description | Solid Carbide Threading Endmills with Coolant Holes Located in the Flutes, for Internal or External Whitworth Thread | Country of Origin | Israel |
Shipping Info
Package Weight
0.08
