MTECB 0375D06 18NPT AC22

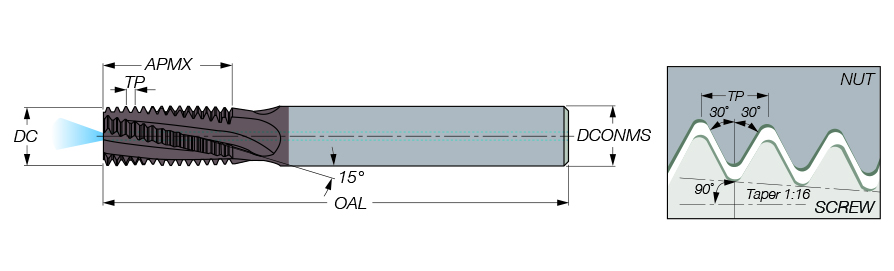

Thread Mill; 1/4, 3/8″ NPT - 18 ; 3/8″ Shank Dia. × 3″ OAL ; Carbide ; TiAlN ; AC22
| Thread Size | 1/4, 3/8″ NPT | Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 18 | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Cutting Position | BOTH |
| Cutting Diameter (DC) | 3/8″ | Measurement Type | Inch |
| Overall Length (OAL) | 3″ | Grade | AC22 |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 0.64″ |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | NPT60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid Carbide Threading Endmills with Coolant Hole for External and Internal NPT Full Profile | Country of Origin | Israel |
