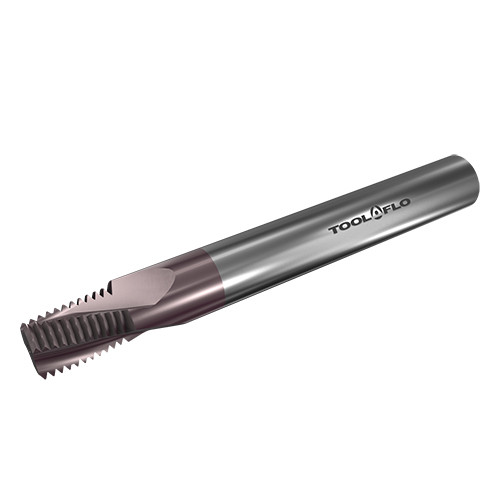

MTECB 0312C04 27NPTF AC22
Thread Mill; 1/8″ NPTF - 27 ; 0.313″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; AC22
| Thread Size | 1/8″ NPTF | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 27 | Flute Helix Angle (FHA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.313″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.299″ | Cutting Position | BOTH |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | AC22 |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 0.43″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | NPTF60 |
Product Features
| Family Description | Solid Carbide Threading Endmills with Coolant Hole for External and Internal NPTF Thread Profile | Country of Origin | Israel |
Shipping Info
Package Weight
0.08
