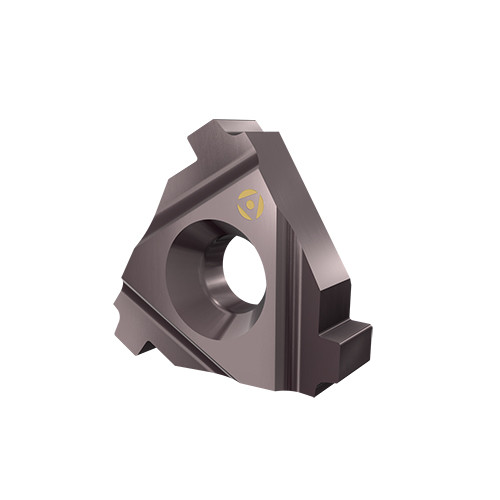

22IR 5B1 GP50A
Laydown Threading Insert ; 0 mm TP ; 5 TPI ; 0.866″ Length ; 1/2″ IC ; Carbide ; GP50A ; TiN
| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.866″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 0 mm | Threads per Inch Minimum (TPIN) | 5 |
| Threads per Inch (TPI) | 5 | Threads per Inch Maximum (TPIX) | 5 |
| Corner Radius (RE) | 0″ | Tool Type | Threading Regular Inserts |
| Grade | GP50A | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | BUT |
| Application | | Ext Threading Laydown | | Profile Distance EY (PDY) | 0.0906″ |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | Internal Right Hand API Buttress Full Profile Laydown Threading Inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.023
