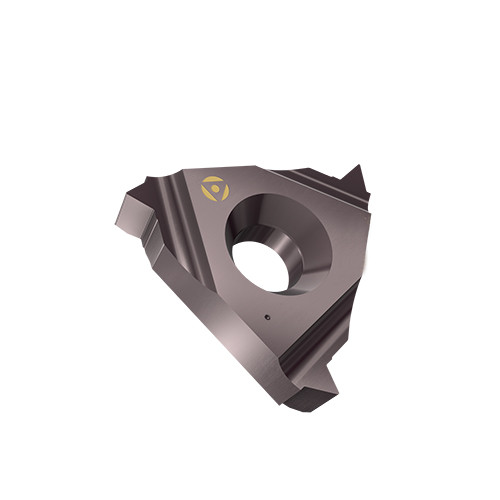

16EL 14NPTF AC22A
Laydown Threading Insert ; 14 TPI ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; Carbide ; AC22A ; TiAlN
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.649″ | Threads per Inch Minimum (TPIN) | 14 |
| Threads per Inch (TPI) | 14 | Threads per Inch Maximum (TPIX) | 14 |
| Corner Radius (RE) | 0″ | Tool Type | Threading Regular Inserts |
| Grade | AC22A | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 0 |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Profile Distance EY (PDY) | 0.04″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | External Left Hand NPTF (National Pipe Threads) Full Profile Laydown Threading Inserts for Steam, Gas and Water Pipes | Country of Origin | USA |
Shipping Info
Package Weight
0.000
