27UIRL 8.00ISO AC22A

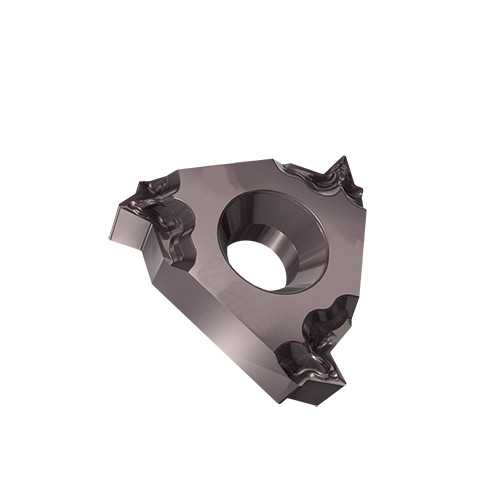

Laydown Threading Insert ; 0.315 mm TP ; 60 Triangle Shape ; 1.06″ Length ; 5/8″ IC ; Carbide ; AC22A ; TiAlN
| Inscribed Circle Diameter (IC) | 5/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 1.083″ | Cutting Direction (HAND) | U-Type |
| Thread Pitch (TP) | 8 mm | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0197″ | Measurement Type | Inch |
| Grade | AC22A | Body Material | Carbide |
| Coating | TiAlN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Profile Distance EY (PDY) | 0.0984″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Internal U-Style ISO Metric (DIN13 12-1986 class 6H) Laydown Threading Inserts for General Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0.053
