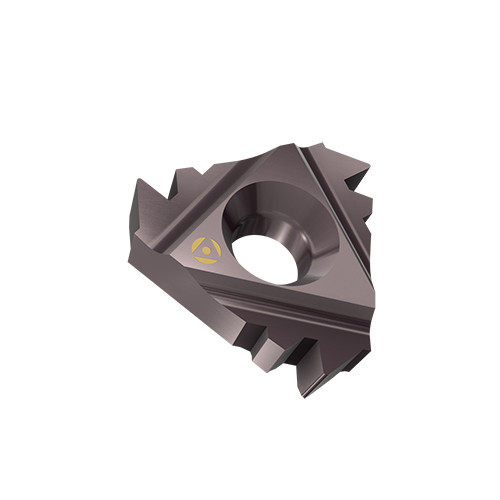

11IL 16ABUT GP50A
Laydown Threading Insert ; 16 TPI ; 60 Triangle Shape ; 0.433″ Length ; 1/4″ IC ; Carbide ; GP50A ; TiN
| Inscribed Circle Diameter (IC) | 1/4″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 0.433″ | Insert Style | Laydown (LT) |
| Threads per Inch (TPI) | 16 | Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.0035″ | Tool Type | Threading Regular Inserts |
| Grade | GP50A | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | ABUT |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Profile Distance EY (PDY) | 0.0394″ |
Product Features
| Family Description | Internal Left Hand American Buttress Laydown Threading Inserts for High Force Transmission in One Direction | Country of Origin | Israel |
