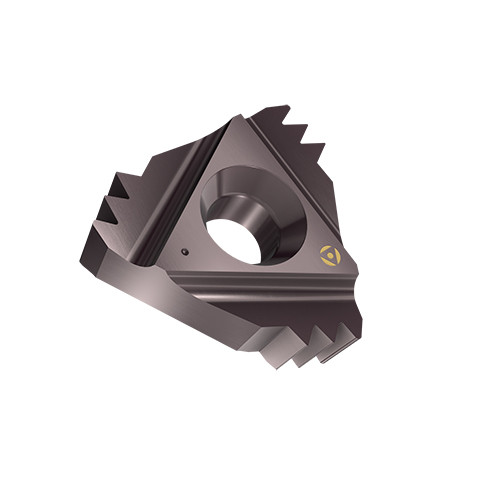

22ER 16UN 3M AC22A
Laydown Threading Insert ; 16 TPI ; 60 Triangle Shape ; 0.87″ Length ; 1/2″ IC ; Carbide ; AC22A ; TiAlN
| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.87″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 16 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0071″ | Measurement Type | Inch |
| Grade | AC22A | Body Material | Carbide |
| Coating | TiAlN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | - |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Profile Distance EY (PDY) | 0.0984″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | External Right Hand American UN Full Profile (UN, UNC, UNF, UNEF) 3-Tooth Laydown Threading Inserts for Gen. Industries | Country of Origin | Israel |
