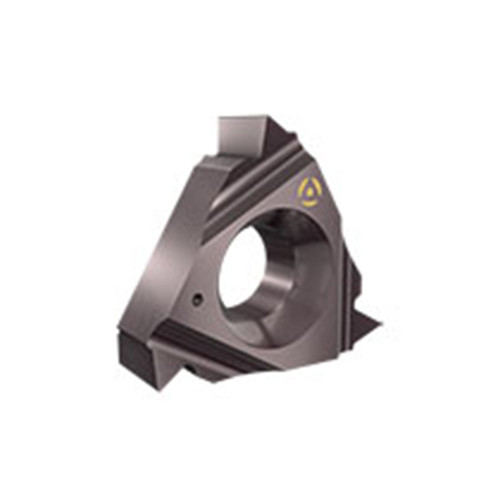

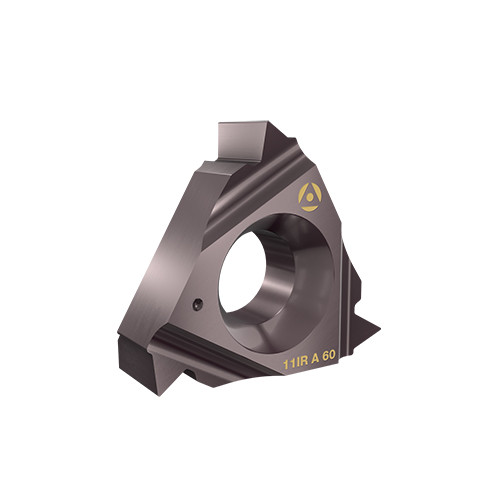

11IR A60 C22
Laydown Threading Insert ; Triangle Shape ; 0.433″ Length ; 1/4″ IC ; Carbide ; C22 ; Uncoated
| Inscribed Circle Diameter (IC) | 1/4″ | Threads per Inch Minimum (TPIN) | 16 |
| Insert Length (INSL) | 0.433″ | Threads per Inch Maximum (TPIX) | 48 |
| Corner Radius (RE) | 0.002″ | Thread Pitch Minimum (TPN) | 0.5 mm |
| Grade | C22 | Thread Pitch Maximum (TPX) | 1.5 mm |
| Coating | Uncoated | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.0315″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Internal Right Hand Laydown Threading Inserts with a 60° Partial Profile for General Industries | Country of Origin | USA |
Shipping Info
Package Weight
0.000
