16EL 20UN GP50A

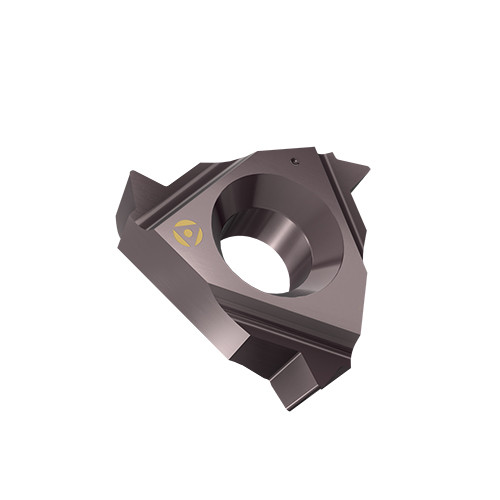

Laydown Threading Insert ; 20 TPI ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; Carbide ; GP50A ; TiN
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Left Hand |
| Threads per Inch (TPI) | 20 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0063″ | Measurement Type | Inch |
| Grade | GP50A | Body Material | Carbide |
| Coating | TiN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | UN60 |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Profile Distance EY (PDY) | 0.0315″ |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | External Left Hand American UN Full Profile (UN, UNC, UNF, UNEF) Laydown Threading Inserts for General Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
