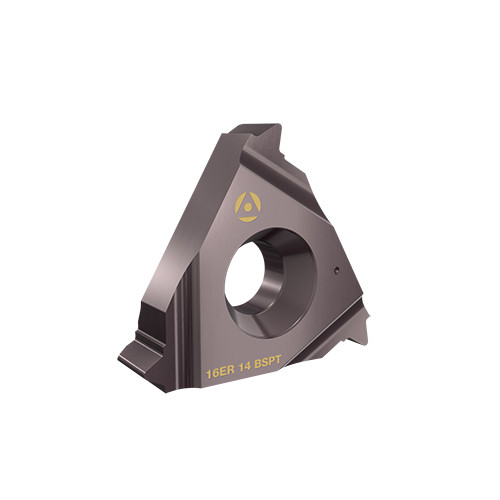

16ER 19BSPT GP50A
Laydown Threading Insert ; 19 TPI ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; Carbide ; GP50A ; TiN
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 0.649″ | Insert Style | Laydown (LT) |
| Threads per Inch (TPI) | 19 | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0063″ | Tool Type | Threading Regular Inserts |
| Grade | GP50A | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | BSPT55 |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Profile Distance EY (PDY) | 0.0315″ |
Product Features
| Family Description | External Right Hand BSPT (British Standard Pipe) B.S.21-1957Full Profile Laydown Threading Inserts | Country of Origin | Israel |
