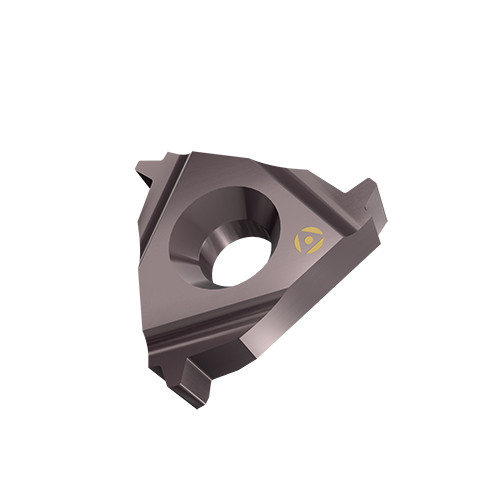

16EL 1.50TR GP50A
Laydown Threading Insert ; 1.5 mm TP ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; Carbide ; GP50A ; TiN
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 0.649″ | Insert Style | Laydown (LT) |
| Thread Pitch (TP) | 1.5 mm | Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.0039″ | Tool Type | Threading Regular Inserts |
| Grade | GP50A | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | TR30 |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Profile Distance EY (PDY) | 0.0394″ |
Product Features
| Family Description | External Left Hand Trapeze Shaped DIN 103 Laydown Threading Inserts for Feed Screws | Country of Origin | Israel |
