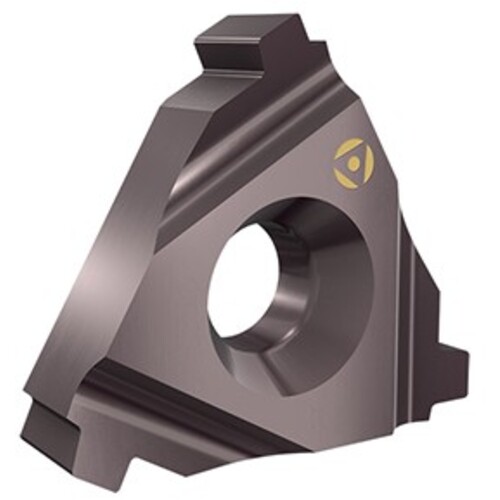

27UIRL 8.0TR GP50A
Laydown Threading Insert ; 0.315 mm TP ; 60 Triangle Shape ; 1.063″ Length ; 5/8″ IC ; Carbide ; GP50A ; TiN
| Inscribed Circle Diameter (IC) | 5/8″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 1.083″ | Insert Style | Laydown (LT) |
| Thread Pitch (TP) | 8 mm | Cutting Direction (HAND) | U-Type |
| Corner Radius (RE) | 0.0157″ | Tool Type | Threading Regular Inserts |
| Grade | GP50A | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | TP30 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Profile Distance EY (PDY) | 0.1055″ |
Product Features
| Family Description | Internal U-Style Trapezoidal Shaped DIN 103 Laydown Threading Inserts for Feed Screws | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
