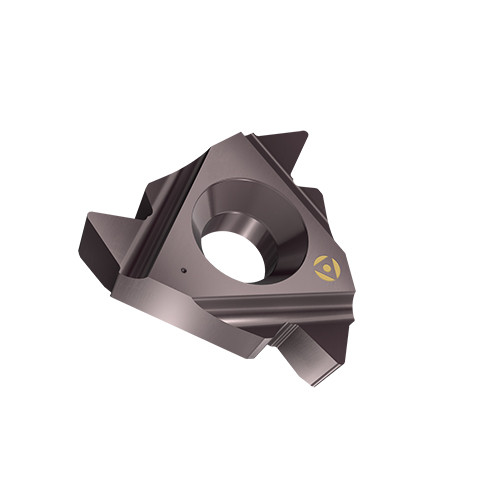

22IL N55 AC22A
Laydown Threading Insert ; 0.87″ Length ; 1/2″ IC ; Carbide ; AC22A ; TiAlN
| Inscribed Circle Diameter (IC) | 1/2″ | Threads per Inch Minimum (TPIN) | 5 |
| Insert Length (INSL) | 0.87″ | Threads per Inch Maximum (TPIX) | 7 |
| Corner Radius (RE) | 0″ | Thread Pitch Minimum (TPN) | 0.138 mm |
| Grade | AC22A | Thread Pitch Maximum (TPX) | 0.197 mm |
| Coating | TiAlN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Profile Distance EY (PDY) | 0″ |
| Insert Style | Laydown (LT) |
Product Features
| Family Description | Internal Left Hand Laydown Threading Inserts with a 55° Partial Profile for General Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0
