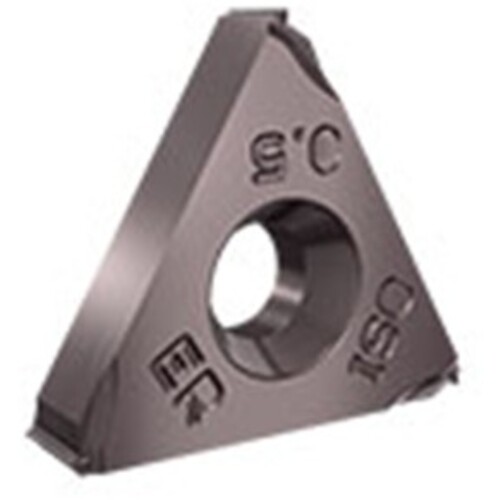

22UERL 5.50ISO GP50A
Laydown Threading Insert ; 60 Triangle Shape ; 0.866″ Length ; 1/2″ IC ; Carbide ; GP50A ; TiN
| Inscribed Circle Diameter (IC) | 1/2″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 0.866″ | Insert Style | Laydown (LT) |
| Thread Pitch (TP) | 0 mm | Threads per Inch Minimum (TPIN) | 0 |
| Threads per Inch (TPI) | 0 | Threads per Inch Maximum (TPIX) | 0 |
| Corner Radius (RE) | 0.0276″ | Tool Type | Threading Regular Inserts |
| Grade | GP50A | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Profile Distance EY (PDY) | 0″ |
Product Features
| Family Description | External U-Style ISO Metric (DIN13 12-1986 class 6H) LaydownThreading Inserts for General Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
