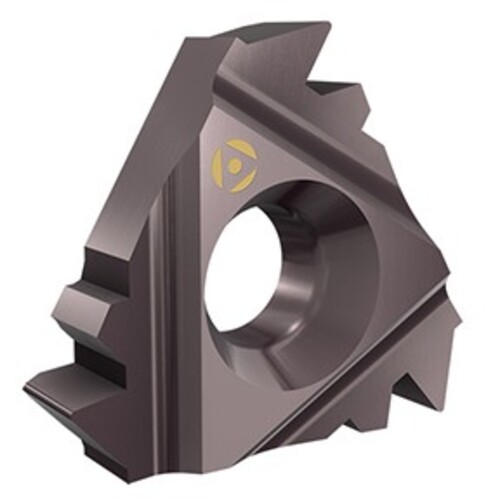

27UEL 3ABUT AC22A
Laydown Threading Insert ; 3 TPI ; 60 Triangle Shape ; 1.063″ Length ; 5/8″ IC ; Carbide ; AC22A ; TiAlN
| Inscribed Circle Diameter (IC) | 5/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 1.083″ | Insert Style | Laydown (LT) |
| Threads per Inch (TPI) | 3 | Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.0177″ | Tool Type | Threading Regular Inserts |
| Grade | AC22A | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | ABUT |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Profile Distance EY (PDY) | 0.1024″ |
Product Features
| Family Description | External Lett Hand U-Style American Buttress Laydown Threading Inserts for High Force Transmission in One Direction | Country of Origin | Israel |
