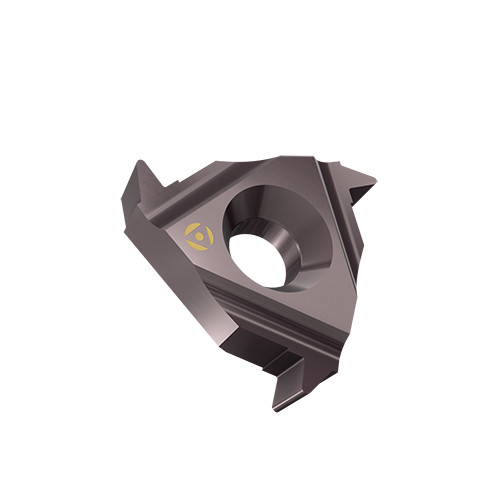

16IL 2SAGE AC22A
Laydown Threading Insert ; 0.079 mm TP ; 60 Triangle Shape ; 0.63″ Length ; 3/8″ IC ; Carbide ; AC22A ; TiAlN
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Left Hand |
| Thread Pitch (TP) | 2 mm | Tool Type | Threading Regular Inserts |
| Grade | AC22A | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | SAGE |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Profile Distance EY (PDY) | 0.0472″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Internal Left Hand Laydown Threading Inserts with Sagengenwinde (DIN 513) Thread Application for High Force inOne Direction | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
