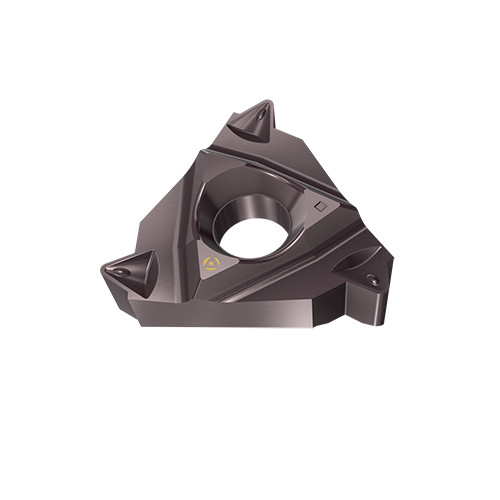

16ERM G60 GP50A
Laydown Threading Insert ; 60 Triangle Shape ; 0.63″ Length ; 3/8″ IC ; Carbide ; GP50A ; TiN
| Inscribed Circle Diameter (IC) | 3/8″ | Threads per Inch Minimum (TPIN) | 8 |
| Insert Length (INSL) | 0.649″ | Threads per Inch Maximum (TPIX) | 14 |
| Corner Radius (RE) | 0.0098″ | Thread Pitch Minimum (TPN) | 1.75 mm |
| Grade | GP50A | Thread Pitch Maximum (TPX) | 3 mm |
| Coating | TiN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | | Thread Form Type (THFT) | VP60 |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.0394″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | External Right Hand Laydown Threading Inserts with a 60° Partial Profile for General Industries with Chip Control | Country of Origin | Israel |
