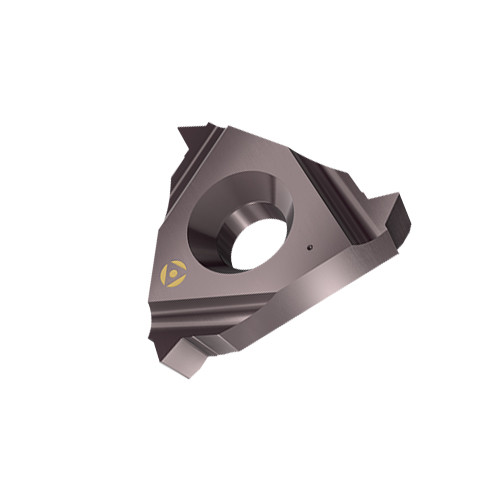

11IR 14W C22
Laydown Threading Insert ; 14 TPI ; 60 Triangle Shape ; 0.433″ Length ; 1/4″ IC ; Carbide ; C22 ; Uncoated
| Inscribed Circle Diameter (IC) | 1/4″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.433″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 14 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0091″ | Measurement Type | Inch |
| Grade | C22 | Body Material | Carbide |
| Coating | Uncoated | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | WH55 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Profile Distance EY (PDY) | 0.0354″ |
| Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Internal Right Hand Whitworth (BSW, BSF, BSP) B.S.84-1956 DIN 259 Medium Class Full Profile Laydown Threading Inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
