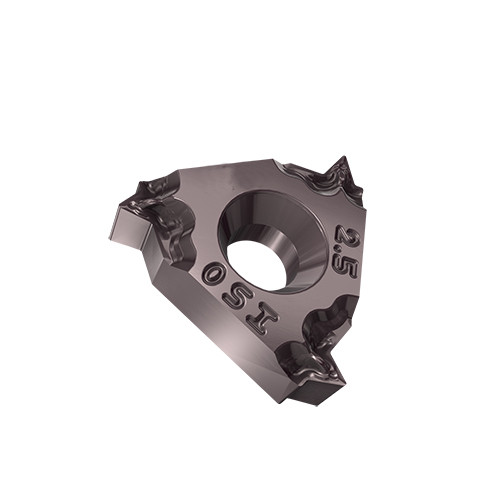

11EL 0.50ISO AC22A
Laydown Threading Insert ; 0.5 mm TP ; 60 Triangle Shape ; 0.433″ Length ; 1/4″ IC ; Carbide ; AC22A ; TiAlN
| Inscribed Circle Diameter (IC) | 1/4″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.433″ | Cutting Direction (HAND) | Left Hand |
| Thread Pitch (TP) | 0.5 mm | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0028″ | Measurement Type | Inch |
| Grade | AC22A | Body Material | Carbide |
| Coating | TiAlN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Profile Distance EY (PDY) | 0.0224″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | External Left Hand ISO Metric (DIN13 12-1986 class: 6g) Laydown Threading Inserts for General Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
