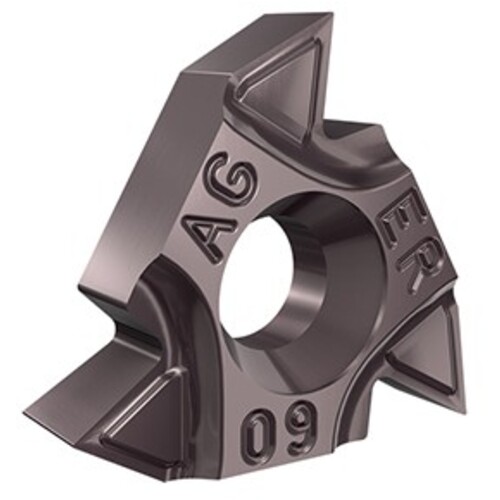

22UEIRL U60 AC22A
Laydown Threading Insert ; 60 Triangle Shape ; 0.866″ Length ; 1/2″ IC ; Carbide ; AC22A ; TiAlN
| Inscribed Circle Diameter (IC) | 1/2″ | Threads per Inch Minimum (TPIN) | 4 |
| Insert Length (INSL) | 0.866″ | Threads per Inch Maximum (TPIX) | 8 |
| Corner Radius (RE) | 0.011″ | Thread Pitch Minimum (TPN) | 3 mm |
| Grade | AC22A | Thread Pitch Maximum (TPX) | 8 mm |
| Coating | TiAlN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.0236″ |
| Cutting Direction (HAND) | U-Type |
Product Features
| Family Description | Neutral U-Style Laydown Threading Inserts with a 60° PartialProfile for General Industries | Country of Origin | Israel |
