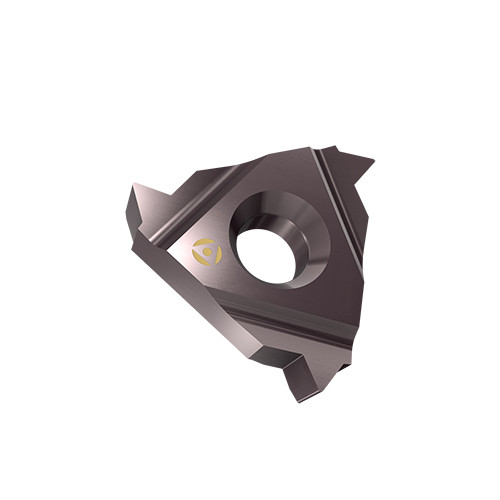

16IL 27NPT GP50A
Laydown Threading Insert ; 27 TPI ; Triangle Shape ; 0.63″ Length ; 3/8″ IC ; Carbide ; GP50A ; TiN
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Left Hand |
| Threads per Inch (TPI) | 27 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0018″ | Measurement Type | Inch |
| Grade | GP50A | Body Material | Carbide |
| Coating | TiN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | NPT60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Profile Distance EY (PDY) | 0.0276″ |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | Internal Left Hand NPT (National Pipe Threads) Full Profile Laydown Threading Inserts for Steam, Gas and Water Pipes | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
