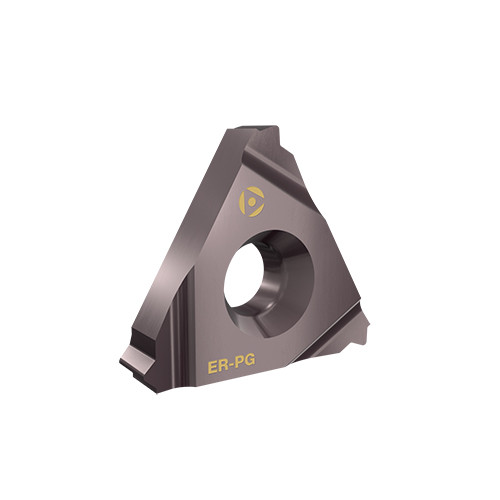

16ER 18PG C22
Laydown Threading Insert ; 1.411 mm TP ; 18 TPI ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; Carbide ; C22 ; Uncoated
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.649″ | Insert Style | Laydown (LT) |
| Thread Pitch (TP) | 1.411 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 18 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0059″ | Measurement Type | Inch |
| Grade | C22 | Body Material | Carbide |
| Coating | Uncoated | Thread Form Type (THFT) | PG |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.0315″ |
| Application | | External Thread Milling | External Threading | Threading Inserts | |
Product Features
| Family Description | External Right Hand PG Thread Profile Laydown Threading Inserts for Electrical Industries | Country of Origin | Israel |
