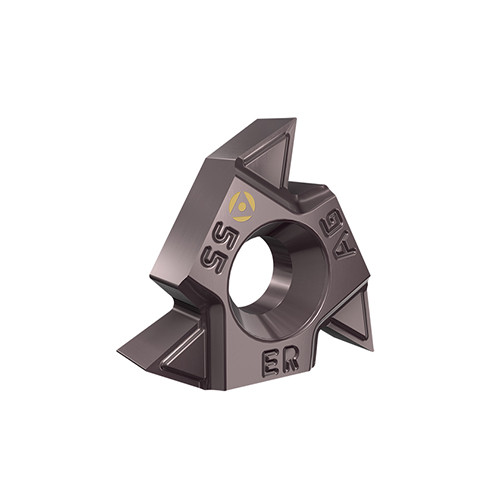

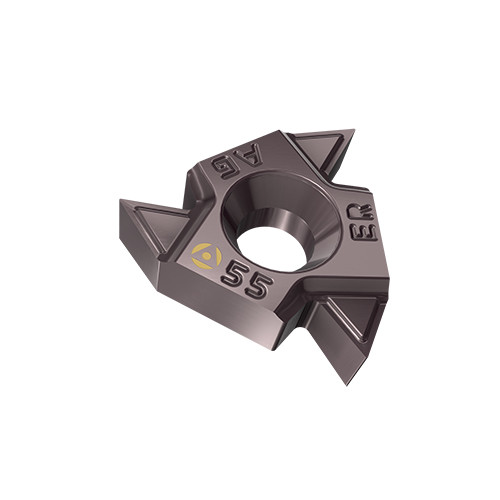

16ER AG55 C22
Laydown Threading Insert ; 60 Triangle Shape ; 0.63″ Length ; 3/8″ IC ; Carbide ; C22 ; Uncoated
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.63″ | Threads per Inch Minimum (TPIN) | 8 |
| Corner Radius (RE) | 0.003″ | Threads per Inch Maximum (TPIX) | 48 |
| Grade | C22 | Thread Pitch Minimum (TPN) | 0.02 mm |
| Coating | Uncoated | Thread Pitch Maximum (TPX) | 0.118 mm |
| Cutting Edge Material | Carbide | Tool Type | Threading Regular Inserts |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Measurement Type | Inch |
| Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Insert Style | Laydown (LT) | Thread Form Type (THFT) | - |
Product Features
| Family Description | External Right Hand Laydown Threading Inserts with a 55° Partial Profile for General Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
