22IR 12UN 3M AC22A

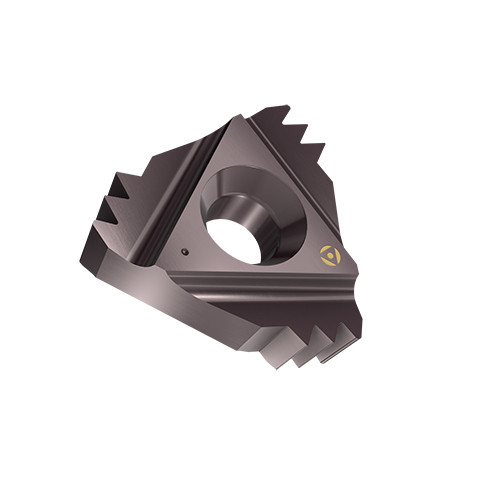

Laydown Threading Insert ; 12 TPI ; 0.866″ Length ; 1/2″ IC ; Carbide ; AC22A ; TiN, TiAlCrN
| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.866″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 12 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0059″ | Measurement Type | Inch |
| Grade | AC22A | Body Material | Carbide |
| Coating | TiAlN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | UN60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Profile Distance EY (PDY) | 0.124″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Internal Right Hand American UN Full Profile (UN, UNC, UNF, UNEF) 3-Tooth Laydown Threading Inserts for Gen. Industries | Country of Origin | Israel |
