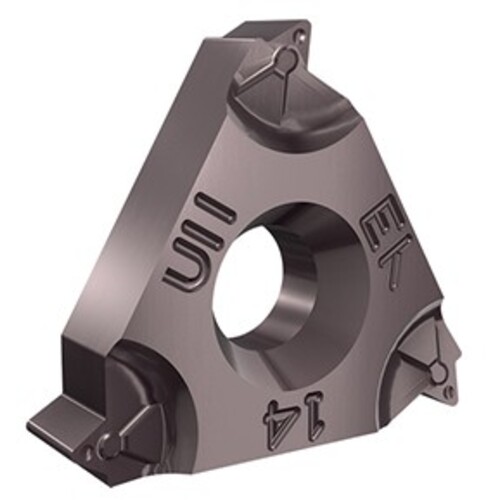

22EL 5UN AC22A
Laydown Threading Insert ; 5 TPI ; Triangle Shape ; 0.87″ Length ; 1/2″ IC ; Carbide ; AC22A ; TiAlN
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.87″ | Shape | Triangle |
| Threads per Inch (TPI) | 5 | Cutting Item Count (CICT) | 1 |
| Grade | AC22A | Threads per Inch Minimum (TPIN) | 5 |
| Coating | TiAlN | Threads per Inch Maximum (TPIX) | 5 |
| Cutting Edge Material | Carbide | Tool Type | Threading Regular Inserts |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Insert Style | Laydown (LT) |
Product Features
| Family Description | External Left Hand American UN Full Profile (UN, UNC, UNF, UNEF) Laydown Threading Inserts for General Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0.1
