16IR 3.0TR AC22A

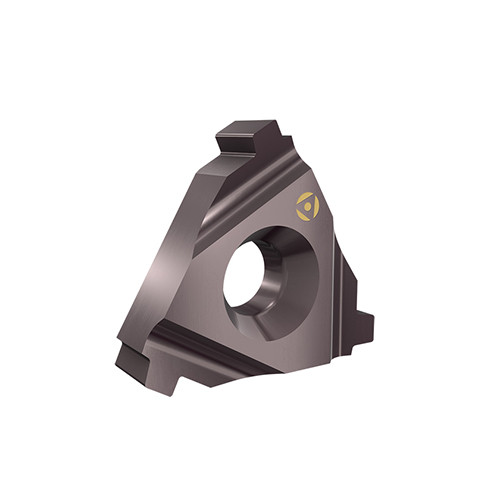

Laydown Threading Insert ; 3 mm TP ; 0.649″ Length ; 3/8″ IC ; Carbide ; AC22A ; TiAlN
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.649″ | Insert Style | Laydown (LT) |
| Thread Pitch (TP) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0079″ | Tool Type | Threading Regular Inserts |
| Grade | AC22A | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | TP30 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Profile Distance EY (PDY) | 0.0512″ |
Product Features
| Family Description | Internal Right Hand Trapezoidal Shaped DIN 103 Laydown Threading Inserts for Feed Screws | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
