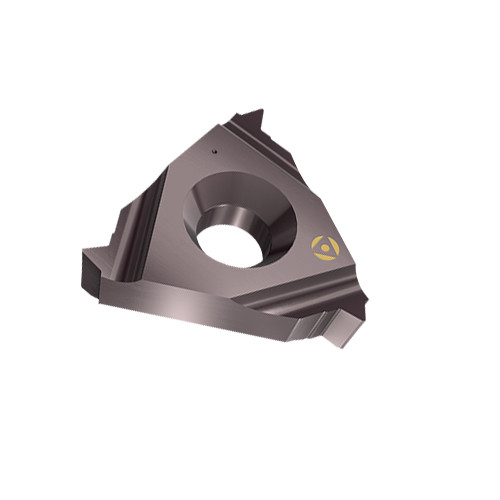

11IL 14W AC22A
Laydown Threading Insert ; 14 TPI ; 0.433″ Length ; 1/4″ IC ; Carbide ; AC22A ; TiN, TiAlCrN
| Inscribed Circle Diameter (IC) | 1/4″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.433″ | Cutting Direction (HAND) | Left Hand |
| Threads per Inch (TPI) | 14 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0091″ | Measurement Type | Inch |
| Grade | AC22A | Body Material | Carbide |
| Coating | TiAlN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | WH55 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Profile Distance EY (PDY) | 0.0354″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Internal Left Hand Whitworth (BSW, BSF, BSP) B.S.84-1956 DIN 259 Medium Class Full Profile Laydown Threading Inserts | Country of Origin | Israel |
