1.5MM 8D TPR BN EM-FORM A

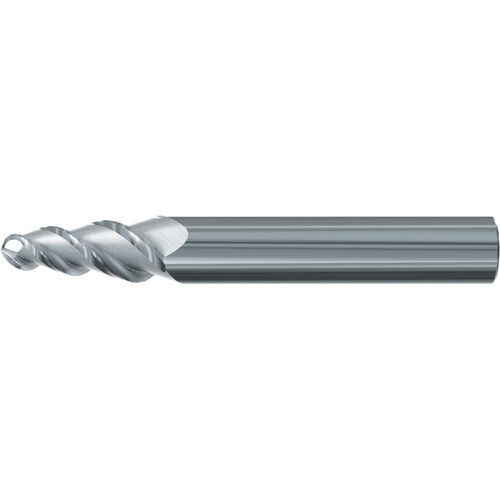

Tapered End Mill; 5.28 mm Dia. × 19 mm LOC × 63 mm OAL × 8 mm Shank Dia. ; 3 FL ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Connection Diameter Machine Side (DCONMS) | 8 mm |
| Application | | Finishing | | Body Half Taper Angle (BHTA) | 8 Degrees |
| Cutting Diameter (DC) | 5.28 mm | Coating | Uncoated |
| Depth of Cut Maximum (APMX) | 19 mm | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Corner Radius (RE) | 1.5 mm | Shank Type | Round |
| Overall Length (OAL) | 63 mm | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 45 Degrees | Series/List # | 3440 |
Product Features
| Remarks | • Turbine tapered carbide ball nose end mill for universal finishing applications in aluminum alloys and plastics • Design with three flutes and various taper angles • Ideal for finishing turbine components or other complex 5-axis components • Bright, no surface finish | Country of Origin | Germany |
Shipping Info
Package Weight
.079
